sameochan
sameochan
Can anybody tell me about the thread size I should look for the :
Nikon 35/2.5 & 35/3.5.
Do I need a vented hood or some said that there is no need of attaching a hood since the lens are deep-seated & surrounded by the barrel. BTW, what about for the UV lens ?
Nikon 50/1.4
Should I go for the vented/tilted new hood from Heavystar ? or, just the normal vented is ok ?
Nikon 85/2
any recommendation for this 48mm hold ?
Thanks guys.
Nikon 35/2.5 & 35/3.5.
Do I need a vented hood or some said that there is no need of attaching a hood since the lens are deep-seated & surrounded by the barrel. BTW, what about for the UV lens ?
Nikon 50/1.4
Should I go for the vented/tilted new hood from Heavystar ? or, just the normal vented is ok ?
Nikon 85/2
any recommendation for this 48mm hold ?
Thanks guys.
Al Kaplan
Veteran
Those 2.5 and 3.5 Nikkor lenses take 40.5mm filters. I believe that the 1.4 needs a 43mm filter. The original Nikon hoods weren't vented. People got some great shots even without being able to see the corner of the image. Vented hoods get bent out of round more easily. Nikon had some pretty sturdy hard coating on those lenses. I wouldn't bother with a UV filter. With recessed lenses you probably don't need a hood either, unless you put a filter on the lens.
sameochan
sameochan
Thanks Al.
What about the 85/2, I intend to get a 48mm to Series 7 Hood.
Any other recommendation ?
What about the 85/2, I intend to get a 48mm to Series 7 Hood.
Any other recommendation ?
The S-mount 35/2.5, 35/3.5 and 50/1.4 all use 43mm filters. The thread pitch is 0.5mm, not the 0.75mm used on modern lenses. Before you buy a hood from Heavystar, confirm that the thread pitch is 0.5mm.
The 85/2 uses 48mm filters. Again the thread pitch is 0.5mm.
The 85/2 uses 48mm filters. Again the thread pitch is 0.5mm.
sameochan
sameochan
Thanks jonmanjiro...
I read it somewhere, dont remember where ... that the 35/3.5 needs a 34.5 front cap...
I read it somewhere, dont remember where ... that the 35/3.5 needs a 34.5 front cap...
Al Kaplan
Veteran
My 85/2 chrome Nikkor came with a 48mm seies VII adapter made by Canon. I guess it's "chrome" but it's badly discolored and pitted. The hood, uglier even than the series VII adapter is a straight sided (no flare to it) "Tiffen SERIES #7-A LENS SHADE MADE IN U.S.A." It's black flocked on the inside which appears to be original.
Dave Wilkinson
Veteran
A calliper-gauge is a very handy tool to have, and can be bought cheaply nowadays.
Dave.
Dave.
sameochan
sameochan
Me ... not a very handy man
sameochan
sameochan
But it seems there are no threads on the outer rim... not received the lens yet...
What front cap to use ? A Snap-on type ?
What front cap to use ? A Snap-on type ?
Filter sizes and thread pitches

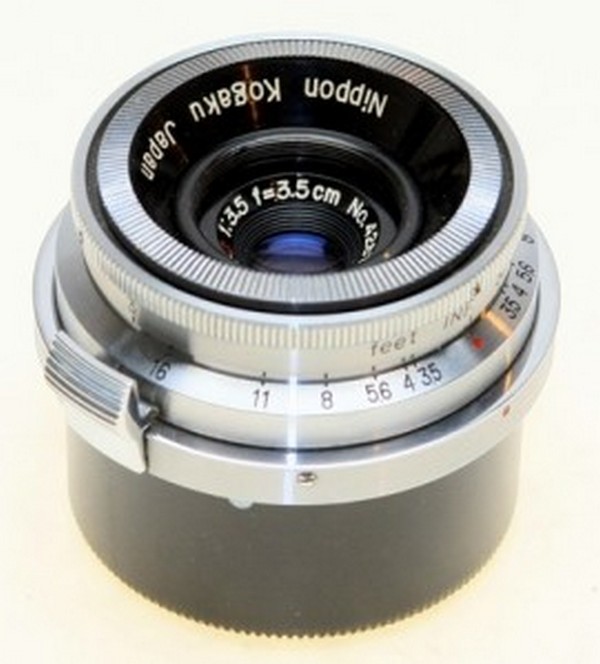

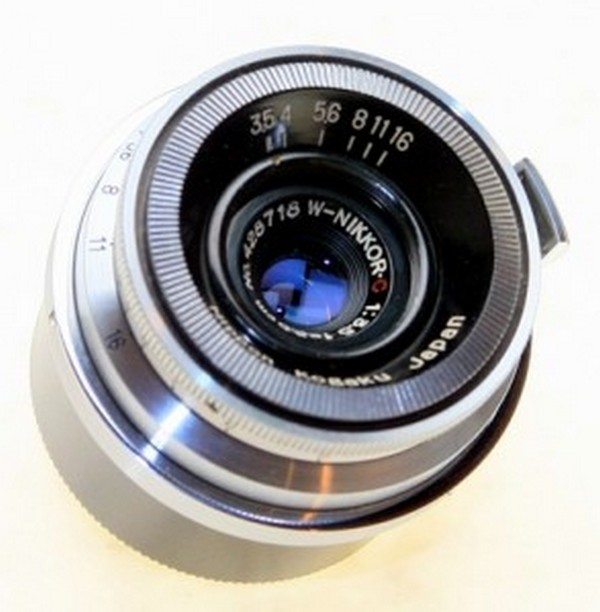

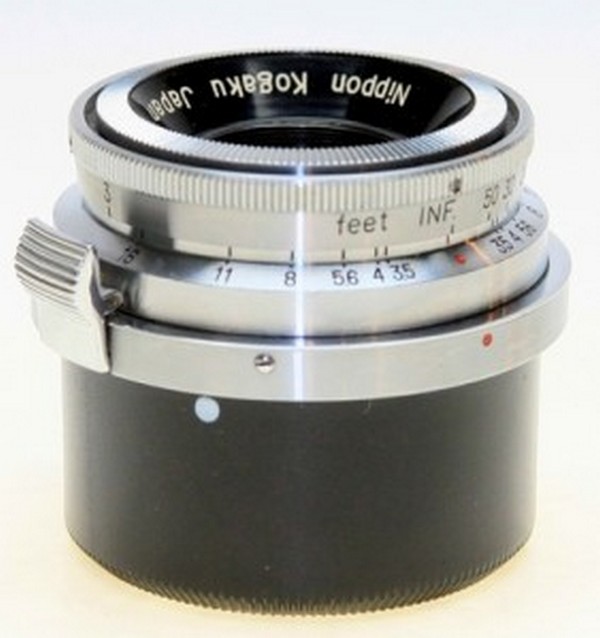

I think the first version of the 35/3.5 (the lens above) doesn't have a filter thread, but the front element is well recessed so you don't really need a hood anyway. The 35/2.5 doesn't really need a hood either.
I think the first version of the 35/3.5 (the lens above) doesn't have a filter thread, but the front element is well recessed so you don't really need a hood anyway. The 35/2.5 doesn't really need a hood either.
tenderobject
paper negative
hi guys,
sorry to bump this thread. i'm trying to find 43mm hood and filter on ebay (seller heavystar) but with no luck. any other online seller or shops who have these generic hoods/filters for 43mm lenses and 40.5mm lenses?
finally, got a hold of my nikon s2 and very happy with it... just need a filter or hood for lens protection (50mm 1.4)
thanks in advance..
sorry to bump this thread. i'm trying to find 43mm hood and filter on ebay (seller heavystar) but with no luck. any other online seller or shops who have these generic hoods/filters for 43mm lenses and 40.5mm lenses?
finally, got a hold of my nikon s2 and very happy with it... just need a filter or hood for lens protection (50mm 1.4)
thanks in advance..
ferider
Veteran
Heavystar does have both 43 and 40.5mm hoods, for example 110409214917@ebay. These wide angle hoods work better than the fenestrated ones, with filter the latter ones vignette.
Cameraquest sells generic hoods as well.
Roland.
tenderobject
paper negative
ah yeah! saw some from heavy2star as well.. thanks!!!
should i buy the vented ones? can i use filter with it?
tenderobject
paper negative
ferider,
saw the hood. is this better than the vented types?
thanks again
saw the hood. is this better than the vented types?
thanks again
ferider
Veteran
I like it better, and used it on both 50/1.4 and 35/1.8 (and these days on Nokton 35/1.4). Also use a similar 40.5 one on 50/2. Nice and small, and heavystar also sells caps to put on the hood. But this is subjective of course ....
The other alternative is Cameraquest's 43mm hood as you can see here:
Best,
Roland.
Last edited:
tenderobject
paper negative
I like it better, and used it on both 50/1.4 and 35/1.8 (and these days on Nokton 35/1.4). Also use a similar 40.5 one on 50/2. Nice and small, and heavystar also sells caps to put on the hood. But this is subjective of course ....
The other alternative is Cameraquest's 43mm hood as you can see here:
Best,
Roland.
pretty nice cameras. will check cameraquest hoods. maybe will get some vested and the wide angle hoods for nikon and leica lenses, thanks again..
very informative thread.
